Step into true realism with the Alpha EVO Sport (9 Nm) — the latest entry-level offering in the SIMAGIC EVO family that doesn’t cut corners. Designed for sim racers who demand precision, responsiveness, and compact form, this wheelbase delivers everything you need for immersive driving, all in one sleek, robust package.
Powered by a custom 5-pole direct-drive (DD) servo motor, the Alpha EVO Sport produces a constant 9 Nm of torque, with ultra-low inertia and “Zero Cogging” technology for silky-smooth feedback — no jerky or uneven resistance, even at fine inputs. Thanks to its advanced encoder (21-bit) and a refresh rate of 20 kHz, every nuance of grip, bump, and car dynamics is faithfully relayed through your hands.
Built to last, the unit features a die-cast aluminum shell, CNC machining, and an active cooling system (“Hyper Cool”) that keeps performance stable during long or intense sessions. The EVO Sport is designed with compatibility in mind: supports SIMAGIC’s ecosystem (wheels, pedals, accessories), works with universal 70mm quick-release wheels, and integrates latest software tools for customization.
Ideal for:
Beginners or intermediate racers wanting the direct drive experience without going full-pro torque.
Compact cockpits or tight rig spaces.
Online multiplayer, endurance endurance sessions, and daily driving sims.
Upgrade your control, feel every detail, and drive with confidence.
| Feature | Details |
|---|---|
| Max Torque | 9 Nm constant torque. |
| Motor Type | Custom-designed 5-pole direct-drive servo motor with ultra-low inertia. |
| Zero Cogging Technology | Ensures very smooth feedback, minimal mechanical judder. |
| Encoder | 21-bit resolution for high fidelity input detection. |
| Refresh / Response Rate | 20 kHz refresh rate for very low latency. |
| Build & Cooling | Die-cast aluminum housing, CNC machined. Active cooling system to maintain performance. |
| Size / Weight / Dimensions | Approx. 281 × 130 × 110 mm; ~6.24 kg (for the 9 Nm model) |
| Mounting & Compatibility | Supports bottom, side, and front/desktop mounting (with brackets); compatible with SIMAGIC wheels, pedals; 70 mm bolt pattern quick-release. |

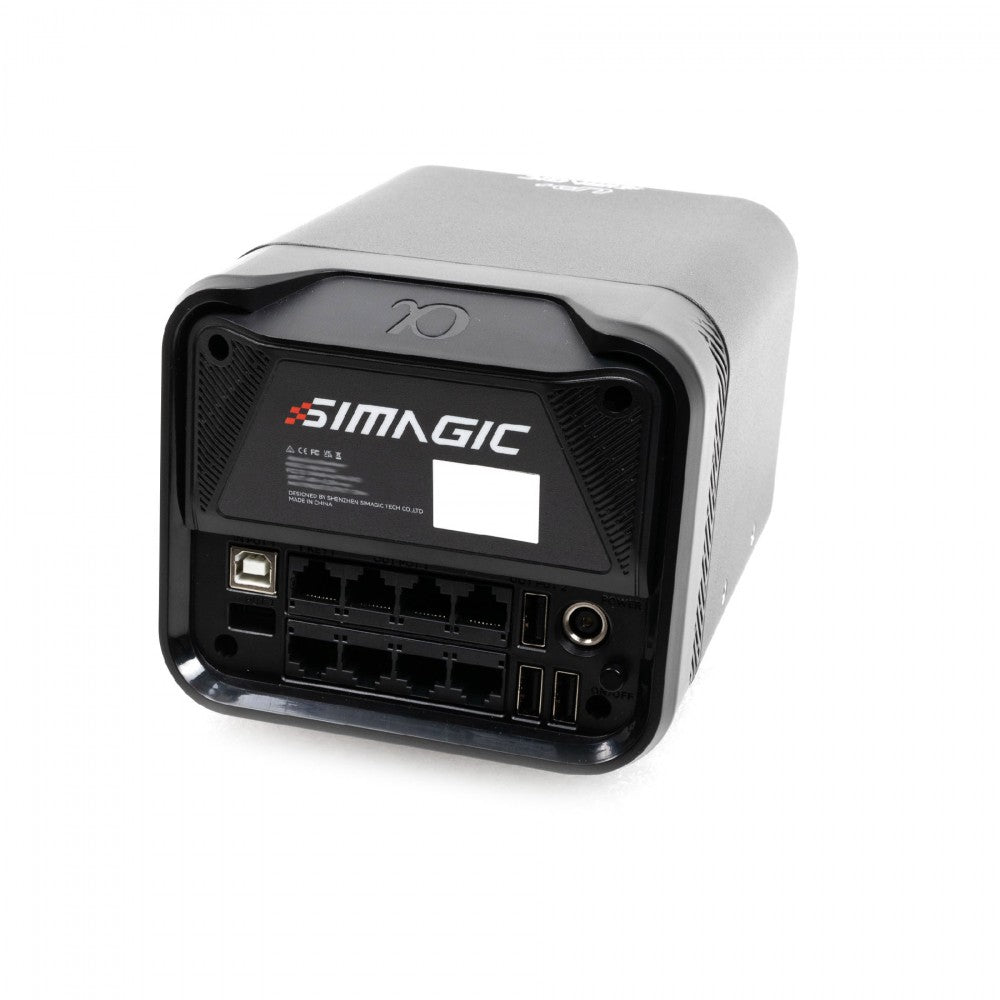

| Connectivity & Ecosystem | USB, CAN / CAN-FD; magnetic socket design; support for SIMAGIC accessories & future expansions like dashboards/dash modules. |
